PLC Siemens VAT demo

Features PLC Siemens VAT demo

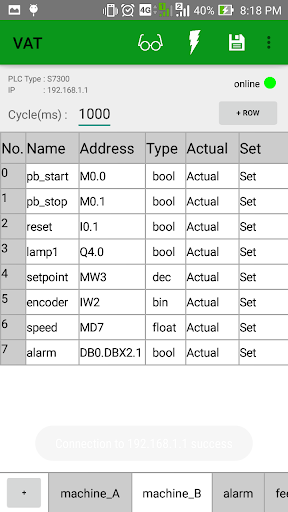

"PLC VAT demo" is a table for monitoring and modifying data value of PLC siemens just like "Variable Table"/VAT in step 7 simatic manager programming software.
This tool is use when you want monitor or modify variable data value of remote PLC through WiFi.
It is more practical using this table tool than create HMI or scada apps when you want monitor a lot of variable data.
This is only for demo, so there are some limitation.
You can buy the full version by the name of "PLC VAT" on google play store.
http://play.google.com/store/apps/details?id=com.teknonat.teknik.vatlimit for demo:- only four top row can be monitored/modified.- Maximum four page can be generateFor Android Marshmallow and newer version :You need to give permission to access or modify media/files so PLC VAT app can create database.
You can do this by accept permission request when PLC VAT first start.
Or by go to setting->apps->PLC VAT->permision.features:- Width of column table can be change.- Hide or unhide column table- Table size can be resize.- Multiple page.- Different page can have different IP.- Table can be save.support :- Siemens S7300, S7400, WinAC- Siemens S71200, S71500.
For this type of PLC, the standard DB-compatible with S7300/400 has to be used.
Not optimized DB!
Please set Protection properties to Full access and set Permit access with PUT/GET communication in PLC-side settings.
You can see full step of this settings in help of PLC VAT app.- Siemens Logo (0BA7 and 0BA8) , S7200.
S7200 status is still experimental.If you find a bug or have a problem please contact by email.Software is using moka7 library (http://snap7.sourceforge.net/moka7.html).
Moka7 and this software are distributed in the hope that it will be useful, but without any warranty, without even the implied warranty or fitness for a particular purpose.
Use entirely on your own risk.
Please remember, that you can write to PLC memory and overwrite data.Simatic S7, S7-300, S7400, WinAC, S71200, S71500, LOGO, S7200 are registered trademarks of Siemens Aktiengesellschaft, Berlin und München.For more information you can contact us by email.Special thanks to learncpp.com.
Even though this app is built using java but by learning c++ from learncpp.com help me a lot learning java.Sonata S.
